Rectangular Tile PV
Codice Articolo: IS007

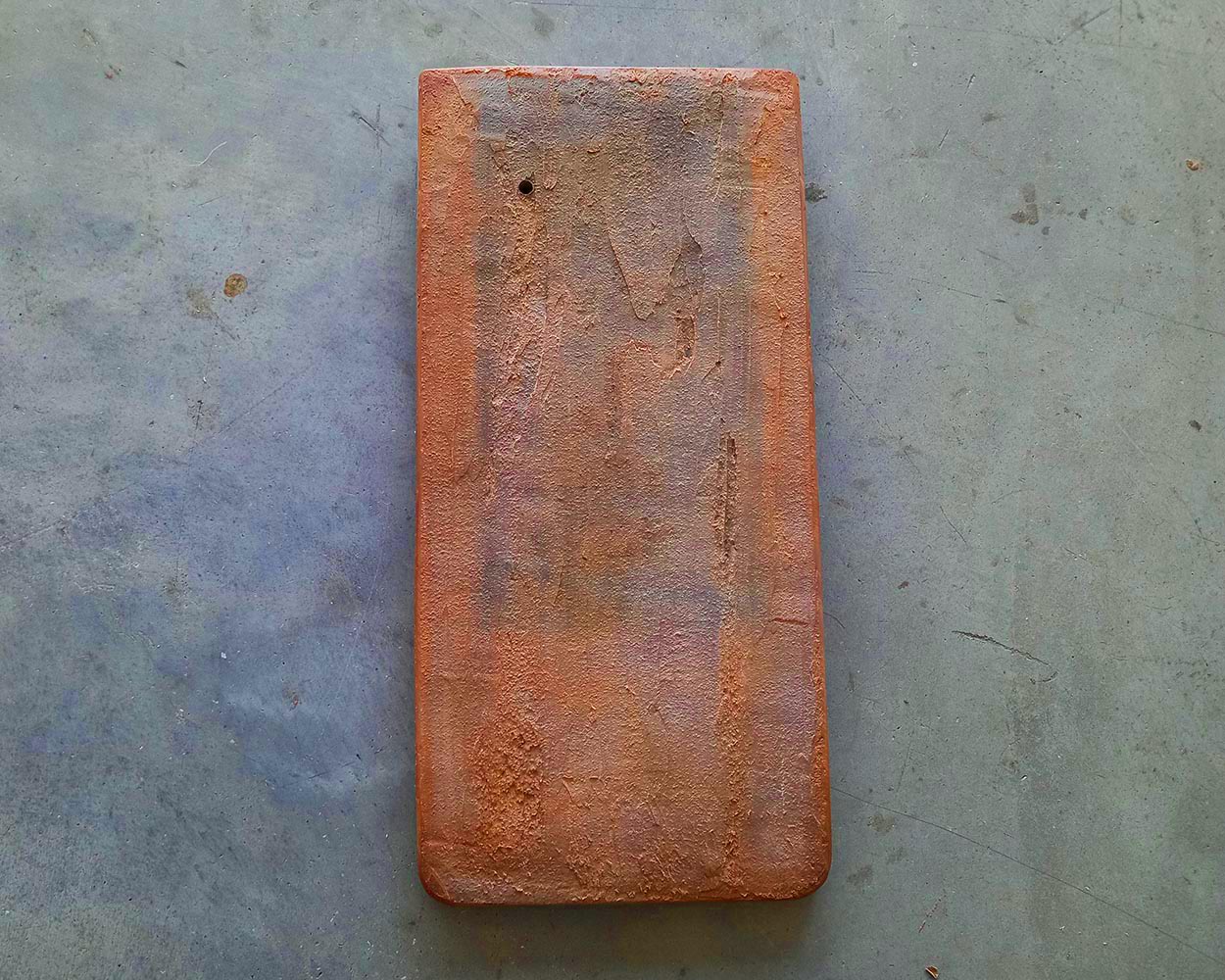

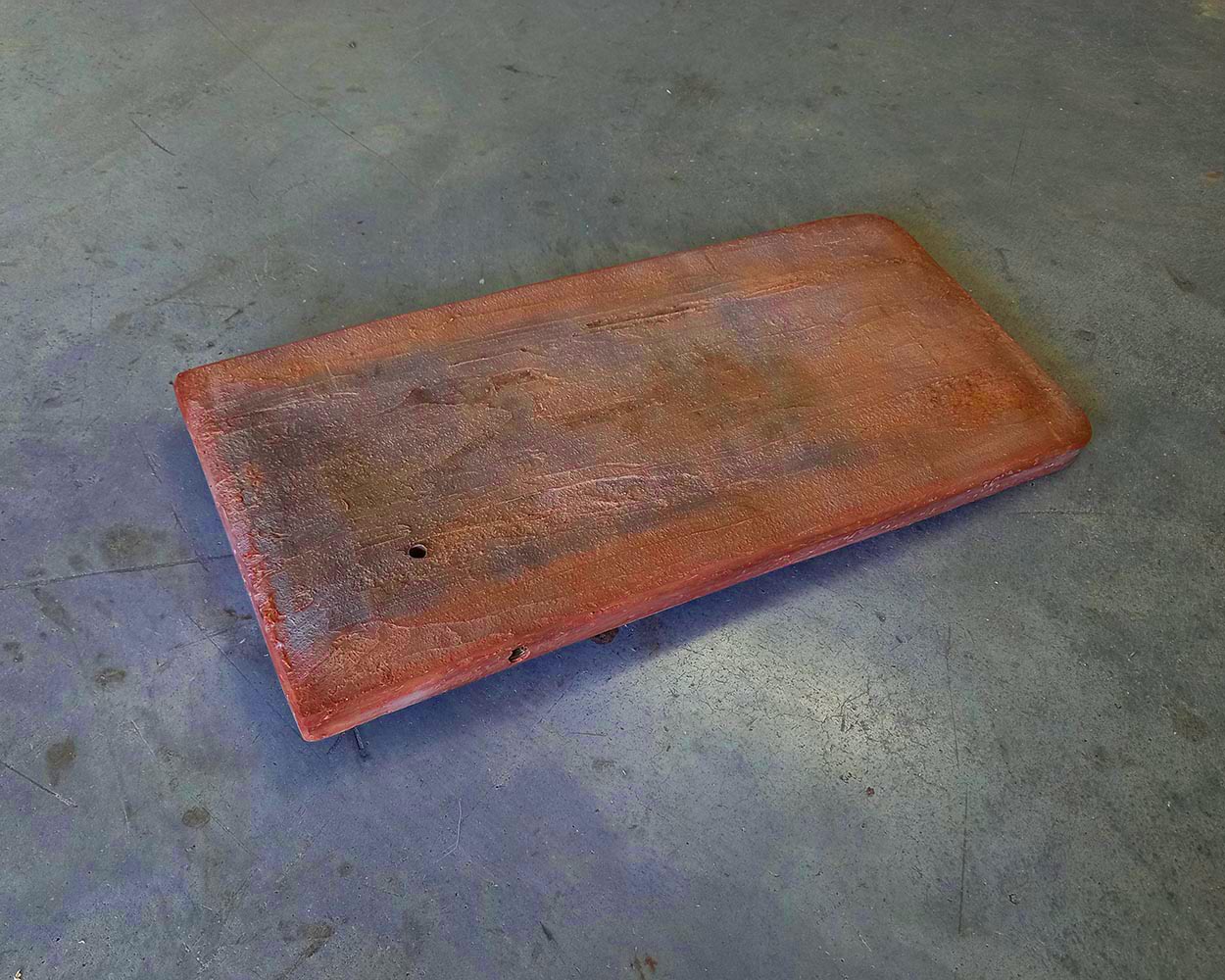

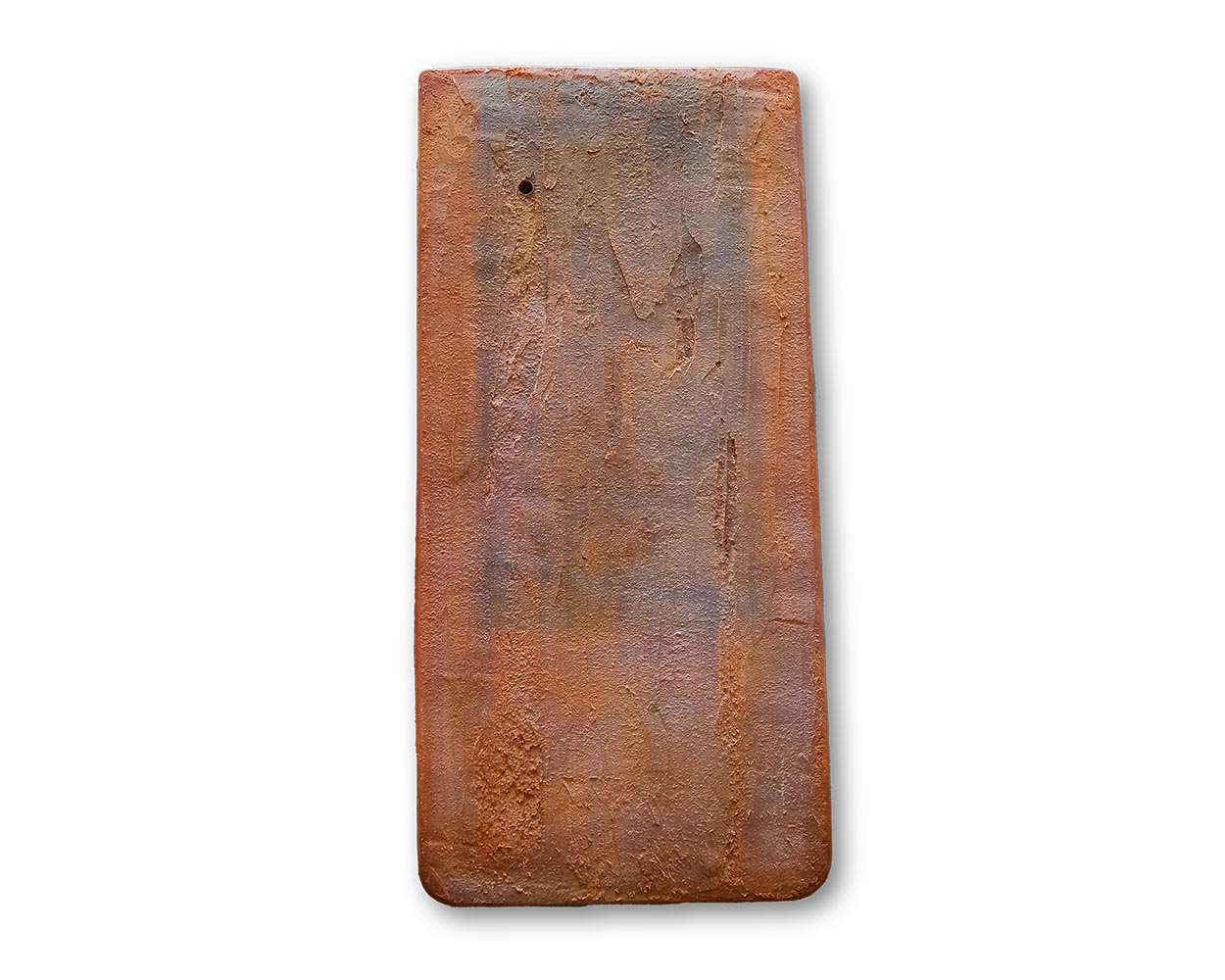

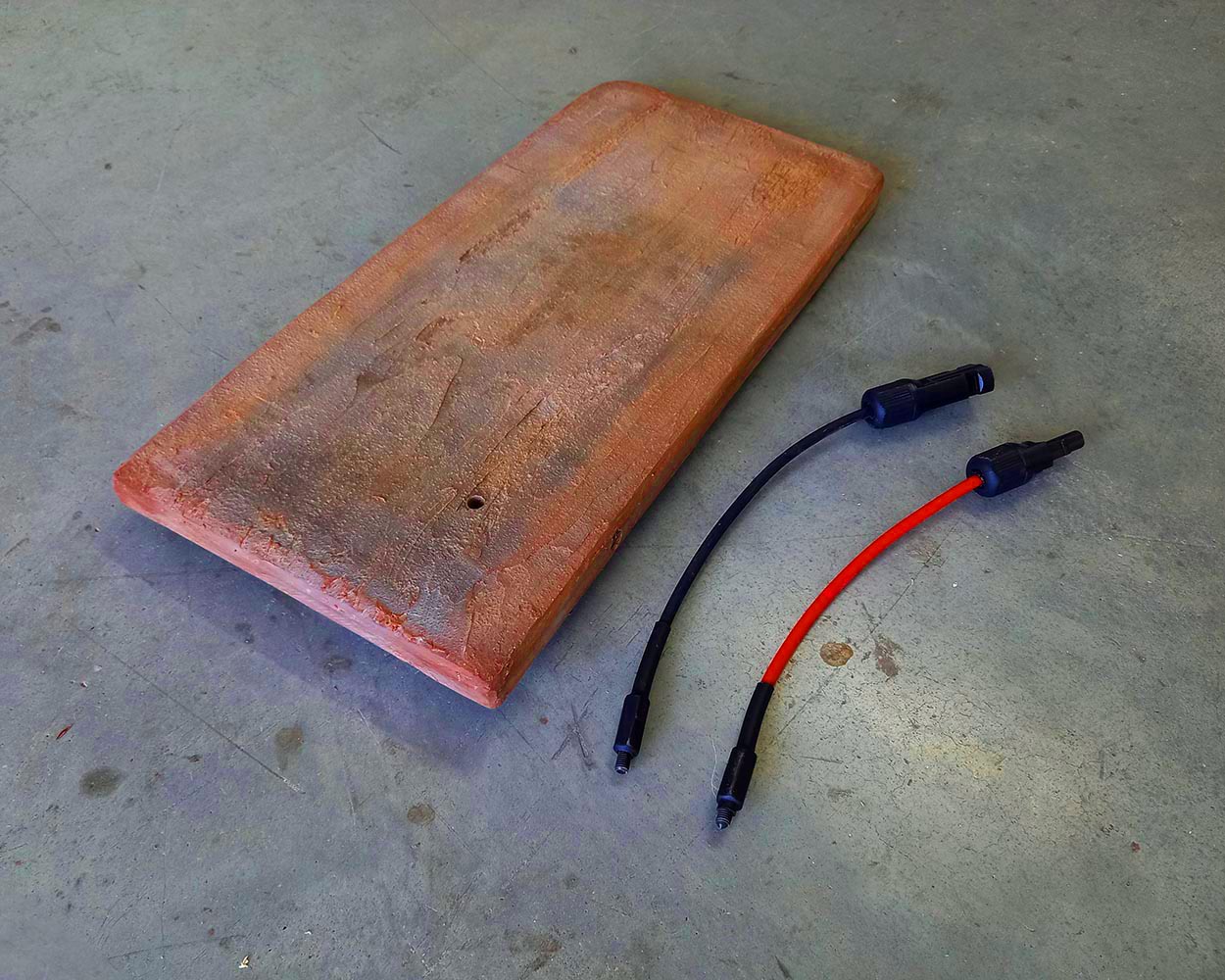

Photovoltaic module shaped as architectural element, made of non-toxic and recyclable polymeric compound in which are embedded monocrystalline silicon cells.
Monolithic element that accurately reproduce the typical aesthetic of clay rectangular tiles.
Technical and economical information
Module specs
| Dimensions | 38 x 18 x h 1,5 cm |
| Nominal power | 7,10 Wp |
| Weigth | 1,60 kg |
| Maximum static load | 500 kg |
| Unit price | 41,00 euro taxes excluded |
Sizing example
| Nominal power | 1 kWp |
| Quantity of Invisible Solar modules | 141 modules |
| Installation area | 9 sqm |
| Price | 5.781,00 euro taxes excluded |
Attention: real sizing can be different according to the installation conditions and must be calculated by a professional technician.
Main features
Integration
The photovoltaic module is a real architectural element that replaces the original one. Shape, color and surface ensure the perfect integration of photovoltaic module to buildings and landscapes.
Self-cleaning and depolluting
Surface of the module is photocatalytic, that means it starts a natural process to turns dirt and smog particles settled on it into harmless salts which will be removed by wind and rain.
Resistance
Module has high mechanical performance, optimal resistance to impact, optimal resistance to chemical solvents and atmospheric agents.
Sustainability
In addition to clean energy production from renewable source, the module is made of non-toxic and recyclable materials, which originated by nature or reuse.
FAQ
Do you need more information? Read the answers to frequently asked questions on the FAQ page.
Download
Ask for quotation
Ask for a free and detailed quotation to learn manufacturing times, payment methods and shipping costs.
